Carinya Awning Window
Available in single glaze (4-10/10.38mm) and Double Glaze (16-18mm), The Carinya Awning window system has been designed to give a sleek modern look without compromising functionality. The integrated fly screen allows for a clean finish on the inside without compromising the operation of the window while the choice of a 41mm or 60mm sash provides a bold finish to the outside. Alspecs’ unique hinge head system removes the need for expensive stays without forgoing the look or performance of the window. Lockable Chain winders allow for smooth operation whilst maintaining strength under wind load.
​
​
Panel Sizes
Height: Min: 300mm
Max: 1550mm
​
Width: Min: 300mm
Max: 1210mm
​
Weight: Up To 43kg
​
Glass Thickness
​
Single Glaze: 4-10mm
10.38mm Laminated
​
Double Glazed: 16-18mm
Please Note: Panel Size refers to the size of individual panels and not the overall size of the window
​
​
Fixed Window
​
Height: Min: 300mm
Max: 2400mm
​
Width: Min: 300mm
Max: 1550mm
​
​
​
​
Frame Dimensions
​
Standard Frame: 50mm
92mm
Product Specifications

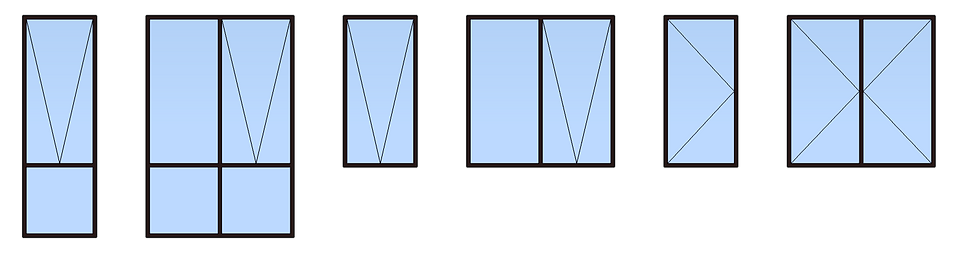

Configurations
