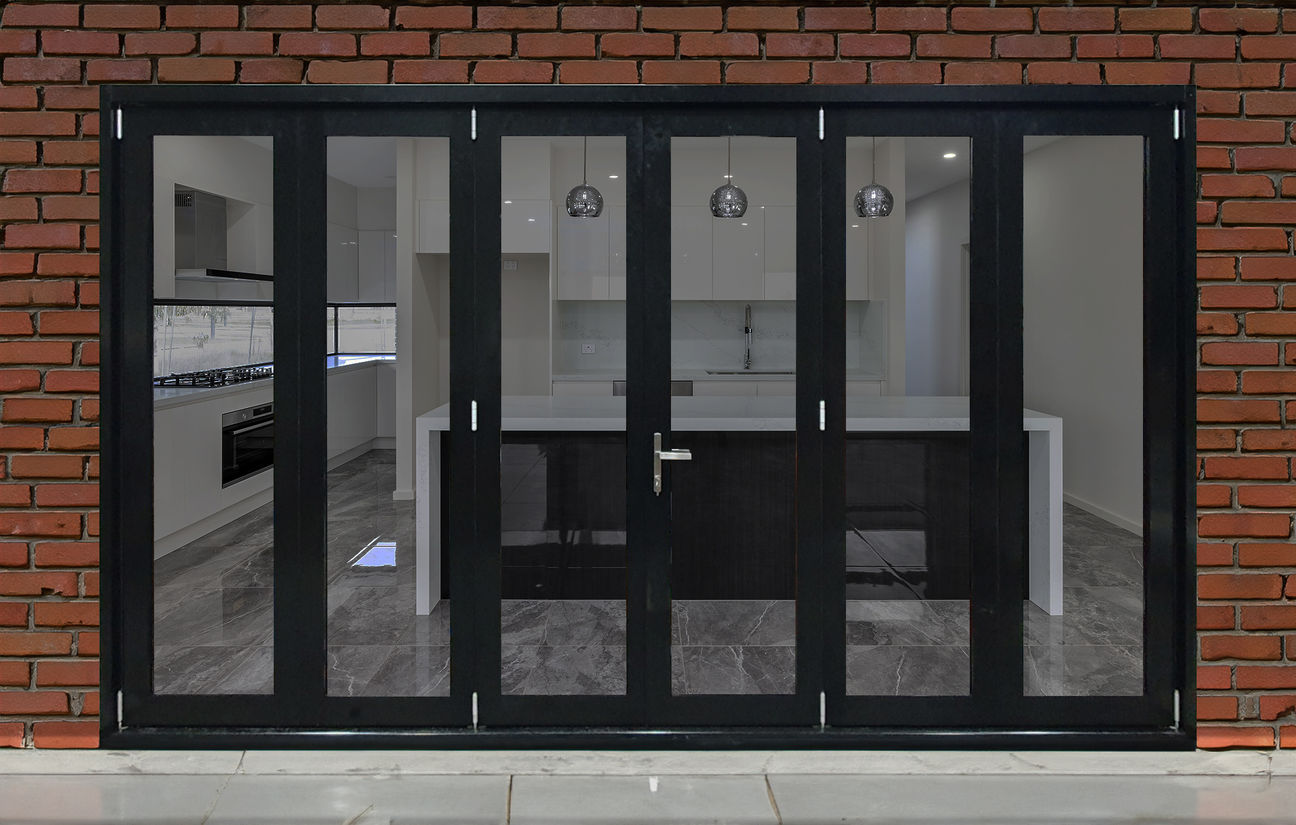

Hawkesbury Bi-Fold Door
Alspec's Hawkesbury Bi-Fold Door has been praised as one of the best Bi-Folding systems available on the market. Alspec’s use of Centaur hardware allows for superior adjustability and performance. The Exclusively designed hardware allows for smooth operation and high performance. Glazing options from 4mm all the way up to 31mm are available. The Hawkesbury Bi-Fold is very customizable with a wide range of different locks and flush bolts available. Open up any space with a wide range of configurations that allow for multiple panels that can fold either way.
​
​
Panel Sizes
Height: Min: 1600mm
Max: 3000mm
​
Width: Min: 500mm
Max: 1000mm
​
Weight: Up to 100kg
​
​
​
​
​
​
​
Glass Thickness
​
Single Glaze: 4-10mm
6.38mm Laminated
​
Double Glazed: 16-30mm
Please Note: Panel Size refers to the size of individual panels and not the overall size of the door
Frame Dimensions
​
Standard Frame: 101.6mm x 44mm
Product Specifications
Configurations
